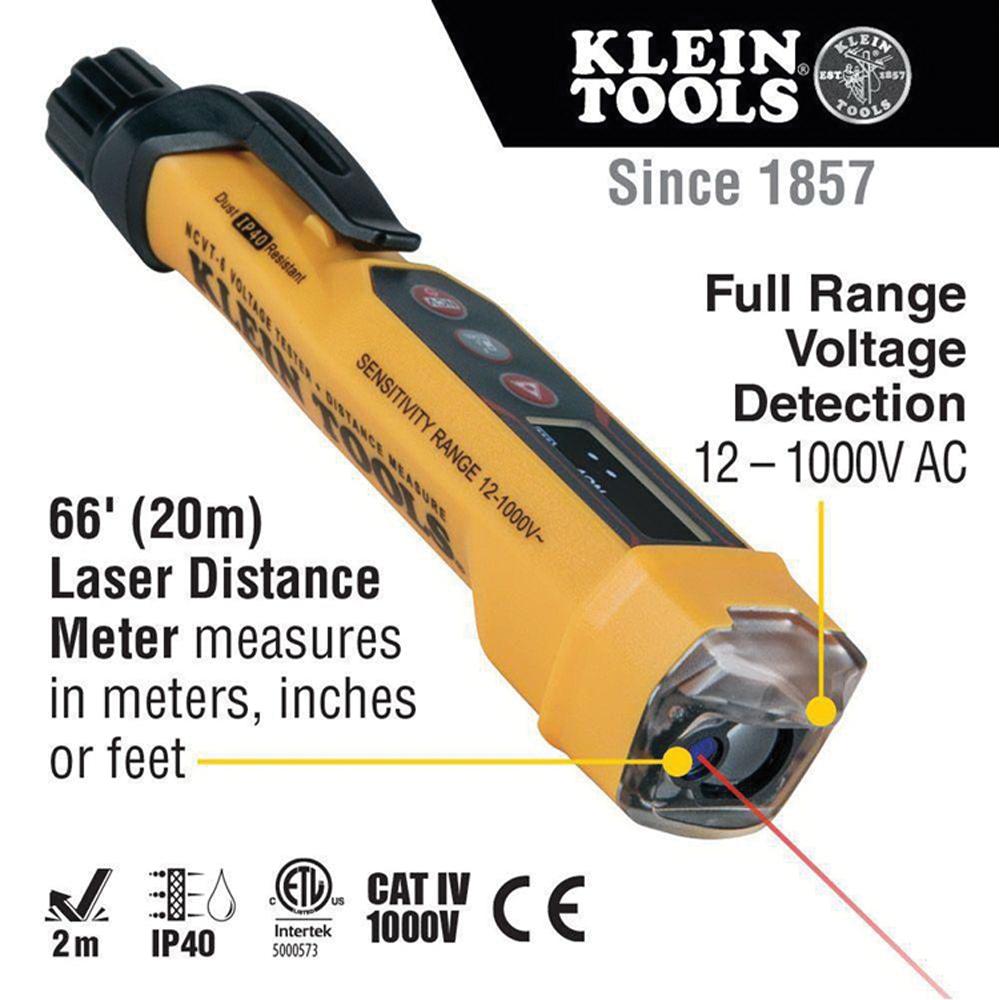

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full range from 12 to 1000 VAC and can measure distances from 2 in up to 66 ft. The laser distance meter functions independently from the NCVT with a simple to use intuitive interface. Easy, single button changes between voltage detection and laser distance measurements.
KLEIN TOOLS® Non-Contact Voltage Tester Pen, 12 to 1000 V, 50 to 500 Hz, Reverse Contrast Display, Alkaline Battery, Plastic, 1.45 in H x 3.94 in W x 9.38 in D, Additional Information: AAA Battery Size
| Additional Information | : | AAA Battery Size |
| Battery Type | : | Alkaline |
| Dimensions | : | 1.45 in H x 3.94 in W x 9.38 in D |
| Display Type | : | Reverse Contrast |
| Frequency Rating | : | 50 to 500 Hz |
| Material | : | Plastic |
| Voltage Rating | : | 12 to 1000 V |

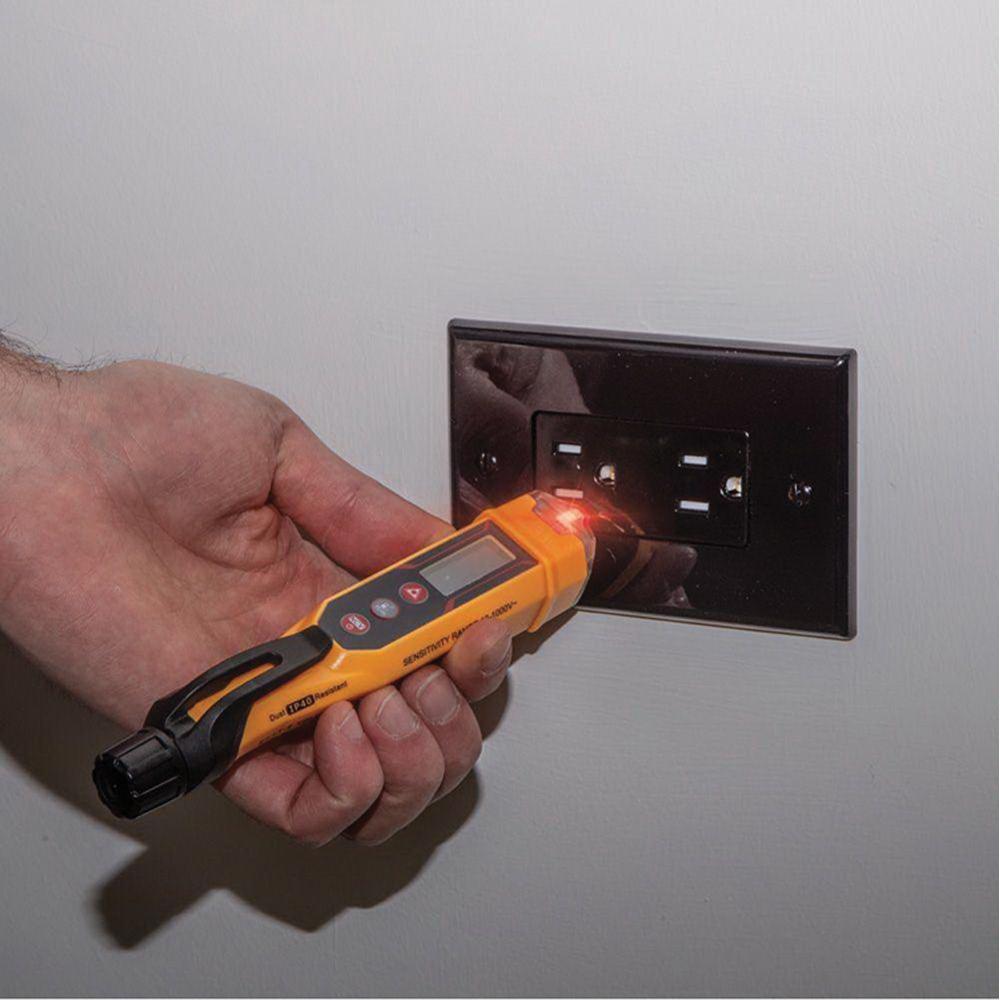

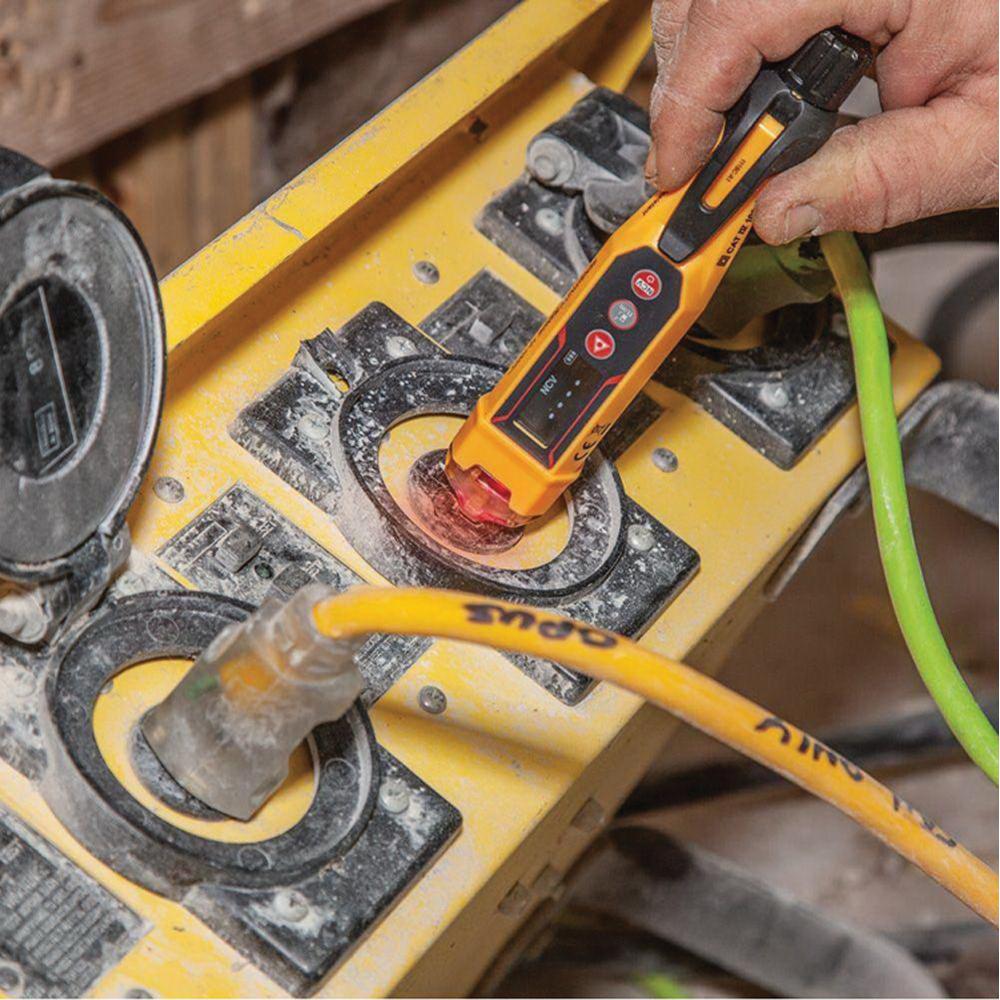

- Provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
- Detects AC voltage from 12 to 1000 V with visual and audible indicators

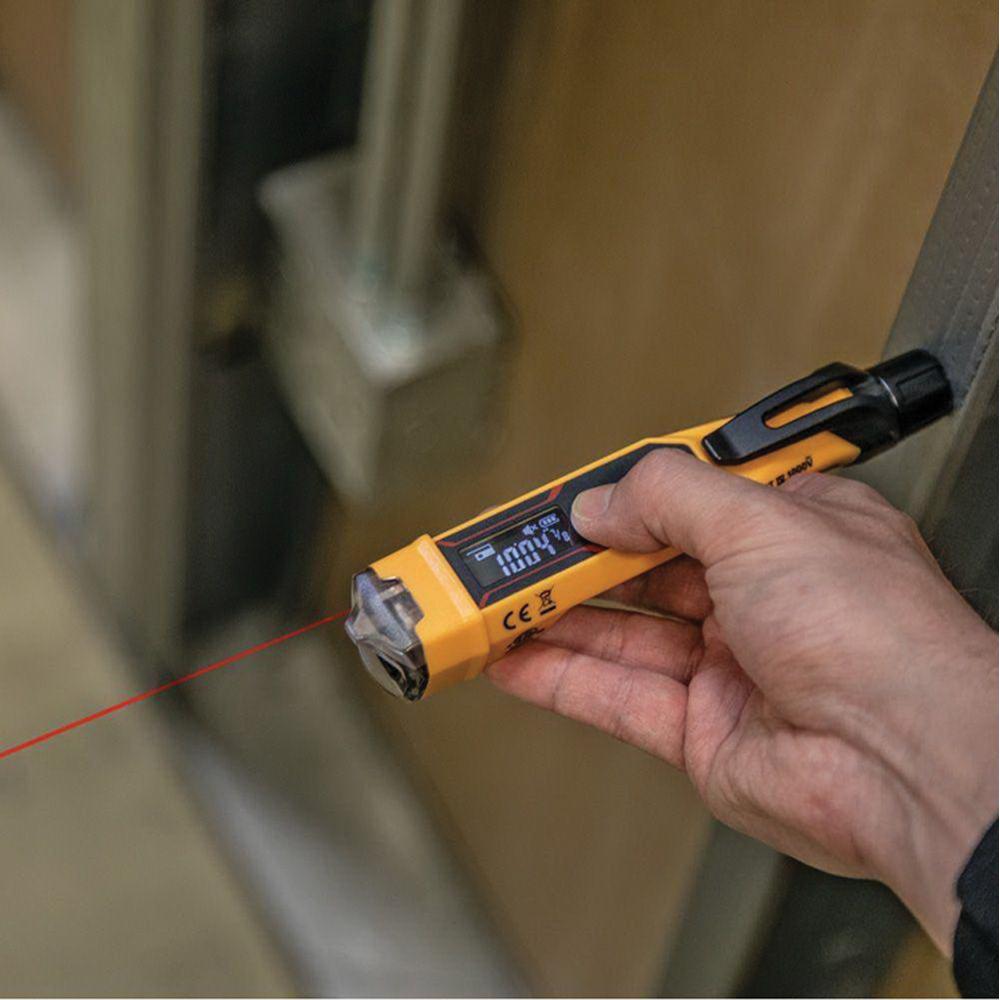

- Incorporates a 66 ft laser distance meter that can measure in meters, inches with decimals, inches with fractions, feet with decimals or feet with fractions
- High-visibility reverse contrast display for better viewing in low-light conditions
- Laser class II, 630 to 670 Nm, maximum power <1 mW
- Simple to use intuitive interface, easy single button changes between laser distance measurements and voltage detection
- Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
- Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed or the closer to the voltage source
- Built to withstand a 6.6 ft drop
- Auto power-off conserves and extends battery life
- Never assume neutral or ground wires are de-energized, neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling
- Laser radiation, Class II laser, do not direct laser beam into eyes, do not stare into the beam or do not view directly with optical instruments as this can cause severe and permanent eye damage
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death
