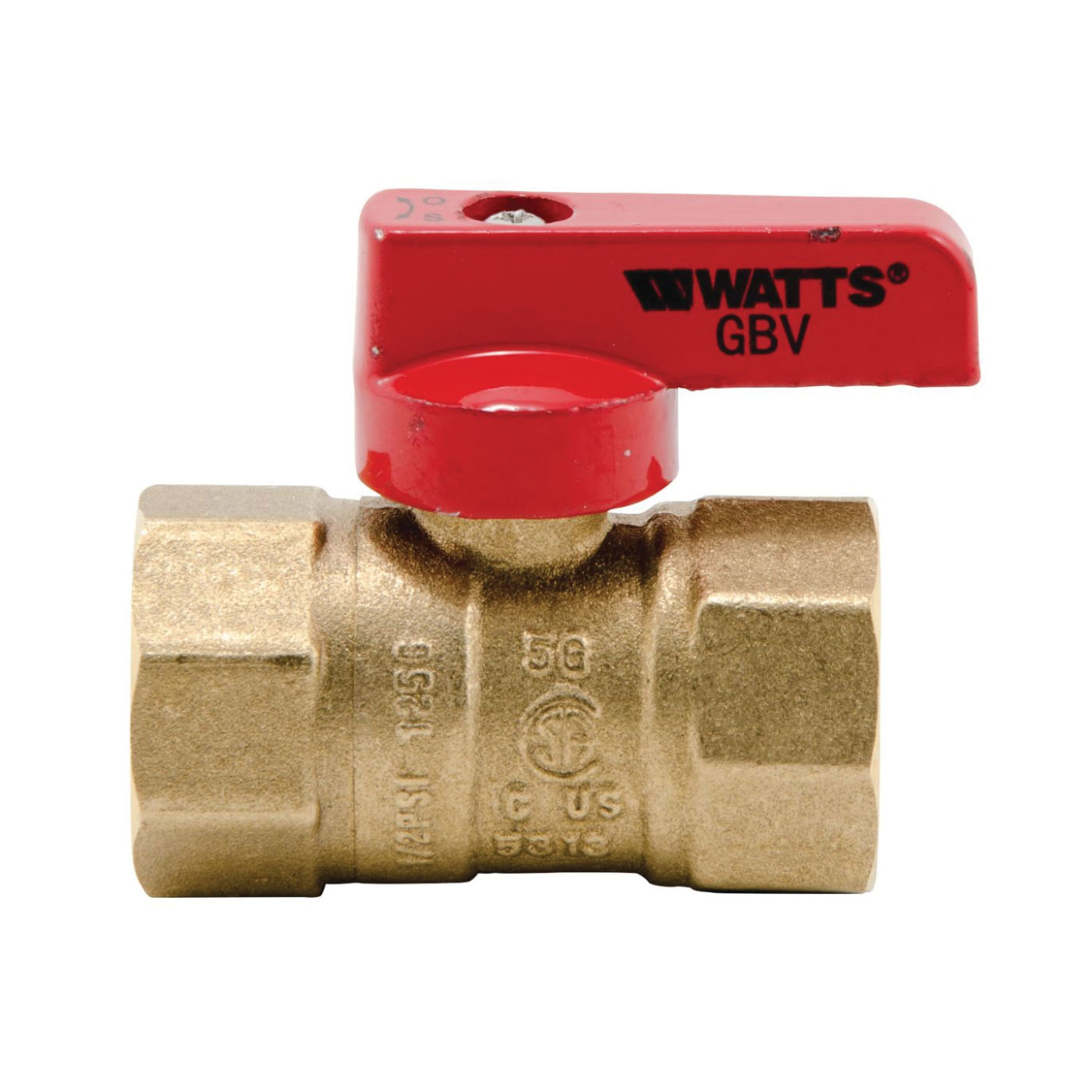

This 1/2 in two piece brass gas ball valve with female threaded end connections is used in residential and commercial applications for natural gas and LP gas on in house and indoor piping systems. The valve features brass body construction, virgin PTFE seats and seals, brass end piece and plug and zinc alloy handle. The temperature range is -20 to 125 deg F. The maximum working pressure is 5 psi.
WATTS® Ball Valve, GBV Series Series, 1/2 in Nominal, FNPT Connection, 5 psi WOG, Gas Media, 2-3/16 in Inlet to Outlet Length, 1-3/8 in Top to Inlet Center, Brass Body, PTFE Seat, PTFE Stem, Virgin PTFE Seal, PTFE Packing, Zinc Alloy Handle, -20 to 125 deg F, 2-3/16 in L
| Body Material | : | Brass |
| Connection Type | : | FNPT |
| Dimensions | : | 2-3/16 in L |
| Handle Material | : | Zinc Alloy |
| Inlet to Outlet Length | : | 2-3/16 in |
| Media | : | Gas |
| Nominal Size | : | 1/2 in |
| Packing Material | : | PTFE |
| Pressure Rating | : | 5 psi WOG |
| Seal Material | : | Virgin PTFE |
| Seat Material | : | PTFE |
| Series | : | GBV Series |
| Stem Material | : | PTFE |
| Temperature Rating | : | -20 to 125 deg F |
| Top to Inlet Center | : | 1-3/8 in |
- Brass two piece body construction
- UL approved at 5 psi
Specification Sheet
