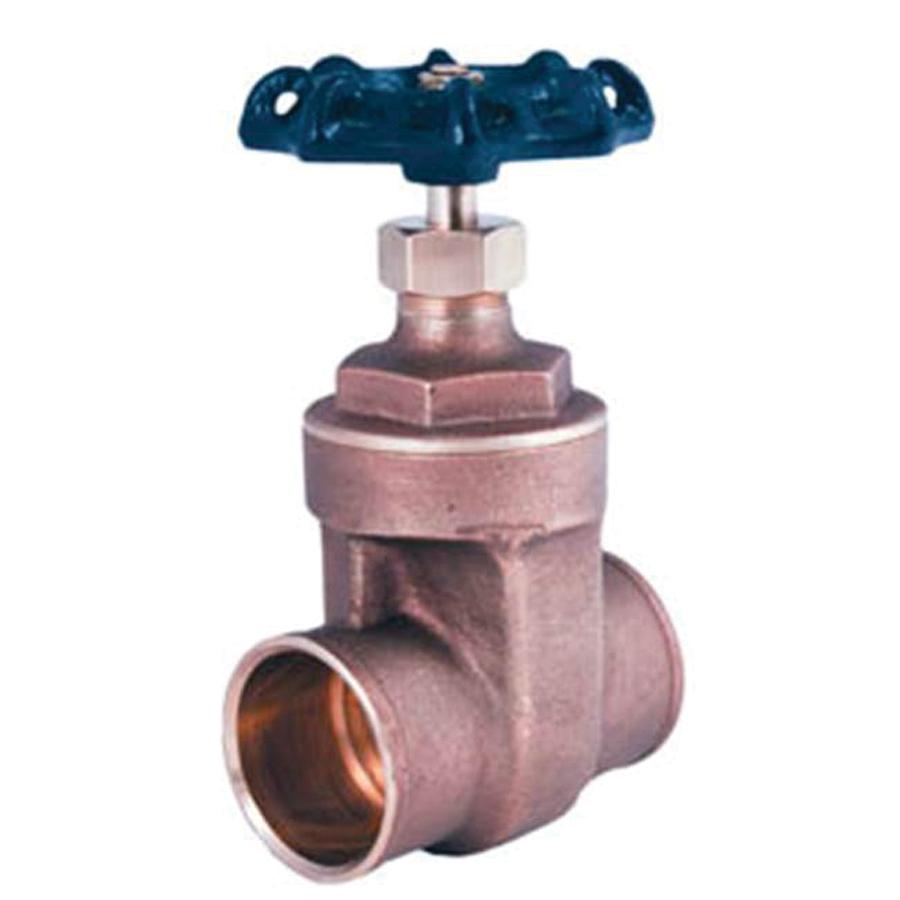

Legend Valve Gate Valve, S-408 Series Series, 1/2 in Nominal, IPS Connection, 200 psi CWP, 1.69 in Inlet to Outlet Length, 2.92 in Top to Inlet Center, Brass Body, Brass Stem, Brass Disc, Graphite Packing, Lead-Free, 1.69 in L
| Body Material | : | Brass |
| Connection Type | : | IPS |
| Dimensions | : | 1.69 in L |
| Disc Material | : | Brass |
| Inlet to Outlet Length | : | 1.69 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 1/2 in |
| Packing Material | : | Graphite |
| Pressure Rating | : | 200 psi CWP |
| Series | : | S-408 Series |
| Stem Material | : | Brass |
| Top to Inlet Center | : | 2.92 in |
- Durable, all brass body construction
- Full flow waterway reduces pressure drop
- Non-rising stem design is compact and reliable
- Solid, fully guided disc wedge opens completely out of the flow path
- Integral seats are precision ground to match each disc wedge
