In-wall Duofix carrier system and concealed tank with actuator flush panel or pneumatic push button for washdown wall hung toilets. System shall fit within minimum 5-1/2 in framing wall or plumbing chase, with wood construction or steel framing members placed 19-3/4 in apart. Framing members should be capable of supporting a 880 lb load without damage to the wall. Water supply shall have flow diameter no smaller than 1/2 in copper tube and a minimum flow pressure of 2 psi. The toilet bowl shall be a third party listed, two-hole wall hung 1.6 gpf or 1.28 gpf, single flush, 1.6/0.8 gpf or 1.28/0.8 gpf dual flush. The carrier frame shall be adjustable for bowl rim heights from 15 to 19 in. Actuator flush panels shall be die cast zinc, molded plastic, glass or fabricated stainless steel and plated to preserve material integrity. All components shall be compliant with applicable codes and product standards.

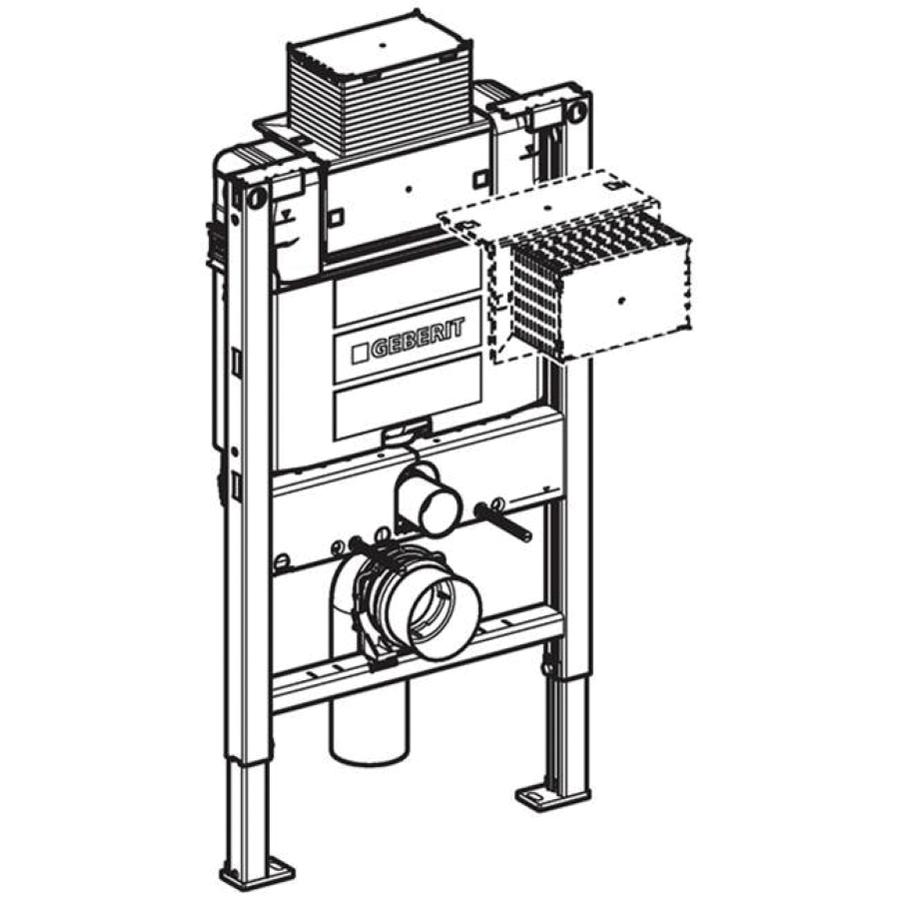

GEBERIT In-Wall Carrier Frame, Series: Omega, Collection: Duofix, Gallons Per Flush: 1.6 or 0.8 gpf, Flush Handle: Push Button, Wall Mounting, HDPE Tank, Dimensions: 19-3/4 in W x 5-9/16 in D x 32-1/4 to 40 in H, Suitable For Use With: 1.6/0.8 gpf (6/3 lpf) Wall Hung Toilet
| Collection | : | Duofix |
| Dimensions | : | 32-1/4 to 40 in H x 19-3/4 in W x 5-9/16 in D |
| Flush Handle | : | Pushbutton |
| Gallons per Flush | : | 1.6 gpf, 0.8 gpf gpf |
| Material | : | HDPE Tank |
| Mounting Type | : | Wall |
| Series | : | Omega Series |
| Suitable For Use With | : | 1.6/0.8 gpf (6/3 Lpf) Wall Hung Toilet |
- Easy cleaning - clean the entire floor with a damp mop, no bending or kneeling
- Improved accessibility requires less space than a standard toilet, enhancing safety and comfort, adjustable bowl height meets personal preference or ADA guidelines
- Water savings - built-in dual flush, 1.6/0.8 gpf or 1.28/0.8 gpf, thousands of gallons every year
- Superior function engineered GEBERIT fill and flush valves eliminate problematic chains and flappers that corrode and fail
- Anti-siphon fill valve type 380
- Impact-resistant HDPE tank, insulated to prevent condensation
- 16 ga, powder-coated, structural steel tubing-rated to 880 lb without damage to finished wall or carrier unit
- Bowl rim height adjustments from 15 to 19 in
- For finished walls up to 3-1/2 in thick
- Small inspection opening for Omega flush actuator plates
- Includes installation and rough-in materials
