Considered one of America's most popular sewage ejectors, this robust family of pumps is known for reliability, durability and performance. These pumps are industry proven, built of cast iron with stainless steel hardware. Comes with an integral, 2-pole, snap action float switch. The heat dissipating cast iron body with powder-coated epoxy finish provides maximum pumping performance under the most extreme conditions. With a cool run design, the hermetically sealed, oil filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.

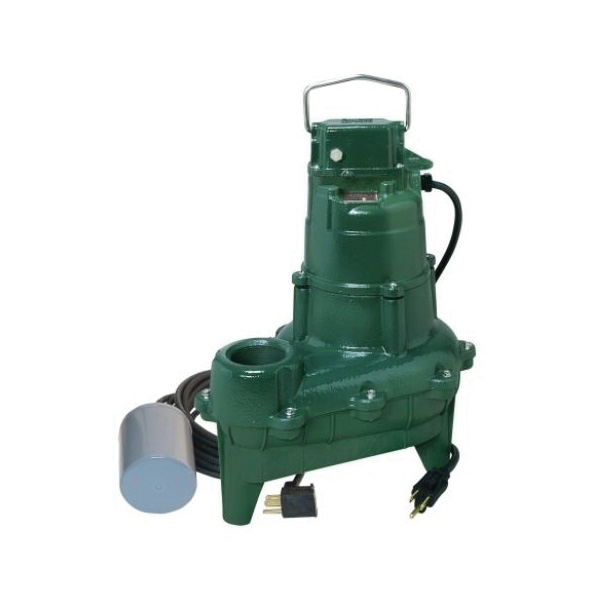

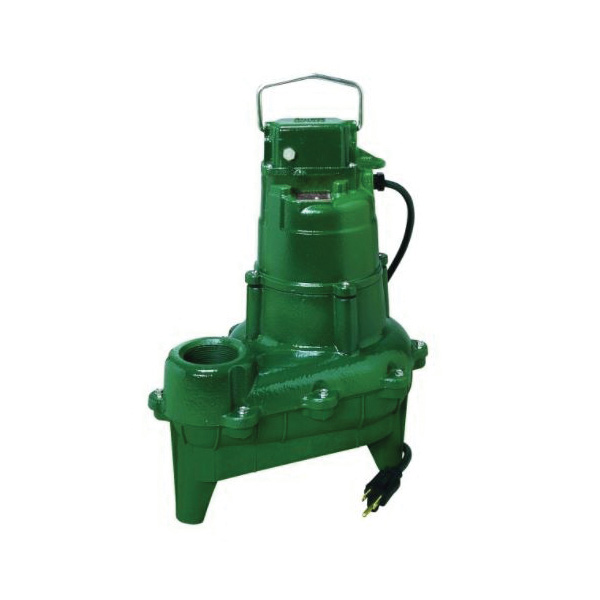

Zoeller® Waste Mate Sewage Pump, Model: 264, 115 VAC, 9.4 A, 60 Hz Frequency, HP Rating: 4/10 hp, 1725 rpm Speed, 90 gpm Flow Rate, 1 ph Phase, 2 in Suction, 2 in Discharge, 15 ft Cord Length, 18 ft Maximum Feet of Head, Sleeve Mounting, 130 deg F, Engineered Plastic Impeller, 14-3/4 in H Dimensions, Cast Iron Housing, Powder-Coated Epoxy
| Amperage Rating | : | 9.4 A |
| Cord Length | : | 15 ft |
| Dimensions | : | 14-3/4 in H |
| Discharge Size | : | 2 in |
| Finish | : | Powder-Coated Epoxy |
| Flow Rate | : | 90 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 4/10 hp |
| Impeller Material | : | Engineered Plastic |
| Material | : | Cast Iron Housing |
| Maximum Feet of Head | : | 18 ft |
| Model | : | 264 |
| Mounting Type | : | Sleeve |
| Phase | : | 1 ph |
| Speed Rating | : | 1725 rpm |
| Suction Size | : | 2 in |
| Temperature Rating | : | 130 deg F |
| Voltage Rating | : | 115 VAC |
- Float operated, submersible (NEMA 6), 2-pole switch
- Durable, cast iron construction - switch cap, motor and pump housing
- Stainless steel screws, bolts, handle, guard, arm and seal assembly
- Corrosion-resistant, powder-coated epoxy finish
- Hermetically sealed, automatic reset thermal overload protection
- Carbon and ceramic shaft seal
- Upper and lower sleeve bearings running in bath of oil
